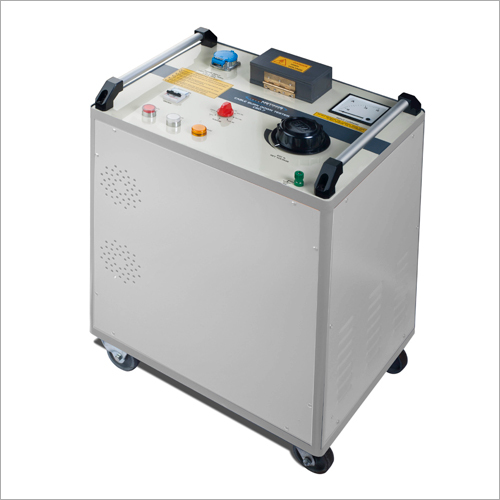

Cable Burn Down Equipment

Cable Burn Down Equipment

Product Details:

  • Product Type Cable Burn Down Equipment
  • Material Stanless steel, plastic
  • Measuring Voltage Range 0-16kV Volt (v)
  • Operating Temperature 0 Deg C ~ 55 Deg C Celsius (oC)
  • Protection System As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color Grey color
  • Dimension(L*W*H) 540 (L)+Handle110 x 435(W) x 600 (H)mm +Handle 55mm + Wheel 100mm Millimeter (mm)
  • Supply Ability : 5 Unit Per Month
1500000 Onwards INR/Unit
X

Price And Quantity

  • 1500000 Onwards INR/Unit
  • 1 Unit

Product Specifications

  • Grey color
  • 0 Deg C ~ 55 Deg C Celsius (oC)
  • 1 YEAR
  • 540 (L)+Handle110 x 435(W) x 600 (H)mm +Handle 55mm + Wheel 100mm Millimeter (mm)
  • 118 Kg Approx Kilograms (kg)
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Cable Burn Down Equipment
  • Stanless steel, plastic
  • 0-16kV Volt (v)

Trade Information

  • 5 Unit Per Month
  • 4 Week
  • No
  • In our scope
  • All India

Product Description

We are a celebrated supplier of Cable Burn Down Equipment to our highly esteemed customers. It less in weight and is the most portable fault location system in the market. This system is the “Easy Go” test system that is easy to operate, interprets the results and need minimal training to find faults. It is operated from line or the internal battery. Cable Burn Down Equipment can fit in the boot of a car, making them suitable for a flexible quick response fault finding strategy.

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Power Consumption

7 kVA Max.

Working Voltage Ranges

AC & DC

Output Voltage

60 V AC - 110 Amp

Ranges

220 V AC - 30 Amp

1.2 kV DC - 6 Amp

4 kV DC - 1.5 Amp

8 kV DC - 0.8 Amp

14 kV DC - 0.5 Amp

Overload

Magnetic shunt protection to limit input current for mains HV transformer

Mains input circuit breaker

Over temperature protection

Safety

Variac zero inter-lock

Protections

Output cable plug inter-lock

Indication

ON / OFF indication

Over heat LED indication

Burn current on moving coil analog current meter

Cooling System

Air cooled

Earth Discharge

Soft and automatic discharge

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

- 5 Deg C ~ 60 Deg C

Dimensions

540 (L)+Handle110 x 435(W) x 600 (H)mm +Handle 55mm + Wheel 100mm

Weight

118 Kg Approx
