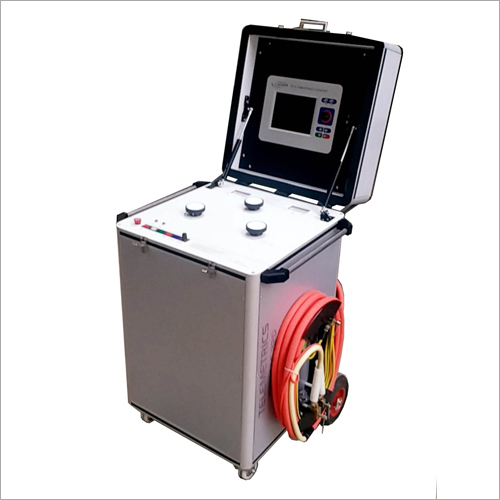

Cable Locator Electrical System

Cable Locator Electrical System

Product Details:

  • Product Type Cable Fault Locator
  • Material Stanless steel, plastic
  • Measuring Voltage Range 0-6kV Volt (v)
  • Operating Temperature 0-55  degree C Celsius (oC)
  • Color Grey color
  • Dimension(L*W*H) 550 (L) x 700 (W) x 750(H) mm +Top cover 200mm + Wheel 100mm Millimeter (mm)
  • Weight 210 Kg Approx Kilograms (kg)
X

Price And Quantity

  • 1 NOS,

Product Specifications

  • 0-6kV Volt (v)
  • Grey color
  • 0-55  degree C Celsius (oC)
  • 1 YEAR
  • Cable Fault Locator
  • 210 Kg Approx Kilograms (kg)
  • 550 (L) x 700 (W) x 750(H) mm +Top cover 200mm + Wheel 100mm Millimeter (mm)
  • Stanless steel, plastic

Trade Information

  • Cash Advance (CA)
  • 5 Week
  • No
  • In our scope
  • All India

Product Description

Cable Fault Locator

We are one of the famous manufacturers of suppliers of a optimum quality range of Cable Fault Locating System that is widely used to trace and locate the fault of underground cables. It is made at our hi-tech manufacturing unit according to the international quality standards under the guidance of our professionals using premium quality components. Offered fault locator is made available in various specifications to meet the diverse requirements of the clients. Our honorable customers can avail this Cable Fault Locating System from us at industry-leading prices.

  • Standard Warranty: One Year
  • Associated receiver use to pin-point cable faults with surge tester: Surge wave receiver SLE90 or SLE 200Z

Specifications

Surge Mode


Output Ranges

0 - 8, 16, 32 kV selectable & continuously variable

Output Energy

2000 Joules full energy at each range

LT Range

0 - 4kV - 2000 Joules max.

Impulse Mode

Single and Auto

Auto Impulse Sequence

1.5, 3 and 6 seconds intervals

DC Test Mode


Output Voltage

32 kV

Output Current

10 mA

Burn Current

60 mA

Indication

ON / OFF lamp indication

Analog moving coil meter for output voltage (kV) Indication

Over Heat indication

Over Load

Input current limiter switch in mains

Protection

input supply Fast blow fuse in controlled supply

Safety

Variac zero inter-lock

Protections

Output cable plug inter-lock

HV Switch inter-lock

Over Heat Protection

Input current Limiter in input supply

Operating Time Surge Test

2 - 3 hours continuous DC Test 3 minutes

Sheath Fault 8kV

- 100mA (Optional)

Power Supply

230V AC + 10%, 50 Hz, Single phase

Cable Fault Pre-locator TFL 9


Voltage of transmitting pulse

30V

Width of transmitting pulse

40 ns-3.56 µs

Measuring range

0 – 64Km

Sampling rate

200MHz

VOP Range

190-300m/µs

Display

8.4 inches, Color LCD, Touch screen

Refer separate catalogues for TFL 9


Temperature

Working 0 Deg C ~ 55 Deg C

Storage - 5 Deg C ~ 60 Deg C

Dimensions

550 (L) x 700 (W) x 750(H) mm +Top cover 200mm + Wheel 100mm

Weight

210 Kg Approx
