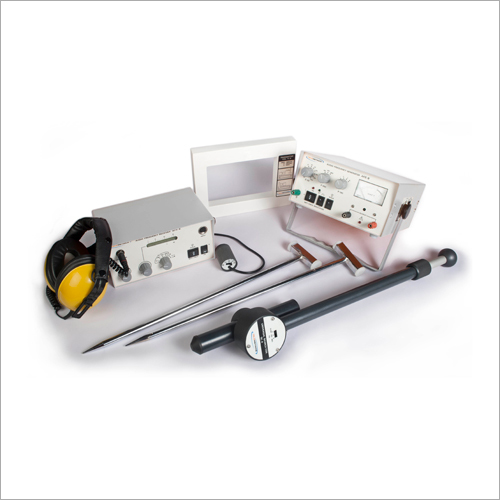

Cable Route Tracer

Cable Route Tracer
Cable Route Tracer
Send Inquiry
Product Code : CRT 8
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • NOS
Product Specifications
  • Product Type
  • Cable Route Tracer
  • Material
  • Stanless steel
  • Operating Temperature
  • 0-55  degree C Celsius (oC)
  • Frequency (MHz)
  • Active 480Hz, 1450Hz, 9820Hz selectable Hertz (HZ)
  • Protection System
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color
  • Grey color0
  • Dimension(L*W*H)
  • 470 (H) x 80 (W) x 207 (D) mm Millimeter (mm)
  • Weight
  • 0.85 kg Approx Kilograms (kg)
  • Warranty
  • 1 YEAR
Product Description

Cable Route Tracer is extensively utilized for detection of underground cables in industrial & public spaces before digging to prevent any damage. It is a lightweight & battery operated system which is known to be completely reliable in nature and assures long service life. This equipment plays a key role in preparing maps of underground laid cables for reference purpose while assuring their hassle-free repair & maintenance. It is highly precise in nature and is equipped with a superior quality transmitter & receiver. Cable Route Tracer also has the ability to locate TEE joints, bends, & live wires with ease.

Cable Route Tracer

Standard Warranty: One Year

Other models available:

  • Cable Route Tracer CRT 10 (Up to 10 Watt max)
  • Cable Route Tracer CRT 50 (Up to 50 Watt max)
  • Cable Route Tracer CRT 200 (Up to 200 Watt max)
  • Cable Route Tracer CRT 500 (Up to 500 Watt max)

Specifications

Audio Frequency Generator AFG 8

Output Power

1, 2, 4 and 8 Watts selectable

Output Frequency

480Hz, 1450Hz & 9820Hz selectable

Impedance Matching

From 0.5 to 1000 Ohms selectable

Indication

Analog meter indication to indicate of transmitted power and charge condition of internal battery

ON Indication

Power Supply

230V AC +10 %, 50 Hz Single phase, or external 12 Volt DC or Internal rechargeable accumulator

Operating Time

Internal accumulator 1.5Hrs on 8Watts Mains and Ext DC power supply no time limit

Storage Temp.

-5 Deg C ~ 60 Deg C

Working Temp.

0 Deg C ~ 55 Deg C

Dimensions

250 (L) x 120 (H) x 255 (D) mm

Weight

5.12 kg Approx

Audio Frequency Receiver AFR 4

Receiving

Passive - 50 Hz

Frequency

Active 480Hz, 1450Hz, 9820Hz selectable

Gain

More than 90 db

Indication

LCD Bar-graph display with scale illumination for signal strength & Battery status indication

Power Supply

8 x 1.5 V AA size alkaline batteries

Operating Time

8 to 10 hrs without scale illumination

Storage Temp.

- 5 deg C ~ 60 deg C

Working Temp.

0 deg C ~ 55 deg C

Dimensions

240 (L) x 110 (H) x 155 (D) mm

Weight

1.35 kg Approx

Universal Search Coil SC 4

Receiving Freq.

50 / 480 Hz, 1450 Hz, 9820 Hz selectable

Axis of Coil

Can be swivelled 45 / 90 Deg

Extension of Coil

Telescope and Adjustable

Dimensions

470 (H) x 80 (W) x 207 (D) mm

Weight

0.85 kg Approx


Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 5 Week
  • Sample Available
  • No
  • Packaging Details
  • In our scope
  • Main Domestic Market
  • All India
