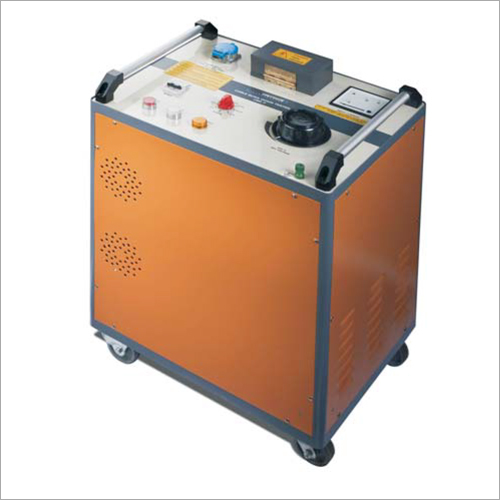

Color Cable Burn Down Equipment

Color Cable Burn Down Equipment

Product Details:

  • Product Type Cable Burn Down Equipment
  • Material Stanless steel, plastic
  • Measuring Voltage Range 0-16kV Volt (v)
  • Operating Temperature 0 Deg C ~ 55 Deg C Celsius (oC)
  • Protection System As per IEC STANDARD AND CUSTOMIZED BASIS
  • Size 64 x 42mm
  • Color Orange color
  • Supply Ability : 5 Unit Per Month
1500000 Onwards INR/Unit
X

Price And Quantity

  • 1500000 Onwards INR/Unit
  • 1 Unit

Product Specifications

  • 1 YEAR
  • Cable Burn Down Equipment
  • 0-16kV Volt (v)
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Stanless steel, plastic
  • 540 (L)+Handle110 x 435(W) x 600 (H)mm +Handle 55mm + Wheel 100mm Millimeter (mm)
  • 64 x 42mm
  • 0 Deg C ~ 55 Deg C Celsius (oC)
  • Orange color
  • 118 Kg Approx Kilograms (kg)

Trade Information

  • 5 Unit Per Month
  • 4 Week
  • No
  • IN OUR SCOPE
  • All India

Product Description

Color Cable Burn Down Equipment is intended to be used for burning down unstable & high resistant faults and for drying wet cable faults as well. It is provided with air cooled system and comprises indication light for overheat condition. This equipment is completely suitable to be used for burning both AC & DC range and has magnetic shunt protection for an overload condition. It features automatic discharge function after switching off or in case of power failure. Color Cable Burn Down Equipment is completely reliable in nature and assures long service life with low maintenance requirement.

Cable Burn Down Equipment

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Power Consumption

7 kVA Max.

Working Voltage Ranges

AC & DC

Output Voltage

60 V AC - 110 Amp

Ranges

220 V AC - 30 Amp

1.2 kV DC - 6 Amp

4 kV DC - 1.5 Amp

8 kV DC - 0.8 Amp

14 kV DC - 0.5 Amp

Overload

Magnetic shunt protection to limit input current for mains HV transformer

Mains input circuit breaker

Over temperature protection

Safety

Variac zero inter-lock

Protections

Output cable plug inter-lock

Indication

ON / OFF indication

Over heat LED indication

Burn current on moving coil analog current meter

Cooling System

Air cooled

Earth Discharge

Soft and automatic discharge

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

- 5 Deg C ~ 60 Deg C

Dimensions

540 (L)+Handle110 x 435(W) x 600 (H)mm +Handle 55mm + Wheel 100mm

Weight

118 Kg Approx
