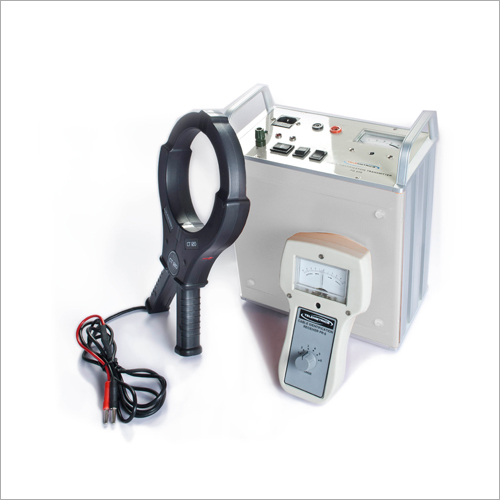

Digital Cable Identification System

Digital Cable Identification System

Product Details:

  • Product Type Digital Cable Identification System
  • Material Stanless steel,
  • Measuring Voltage Range 36 V Volt (v)
  • Operating Temperature 0-55  degree C Celsius (oC)
  • Protection System As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color Grey color
  • Dimension(L*W*H) 268(L) x 160(W) x 35(D) mm Millimeter (mm)
X

Price And Quantity

  • 1 NOS,

Product Specifications

  • Stanless steel
  • 0-55  degree C Celsius (oC)
  • 1.8kg Kilograms (kg)
  • Grey color
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • 36 V Volt (v)
  • 268(L) x 160(W) x 35(D) mm Millimeter (mm)
  • Digital Cable Identification System

Trade Information

  • Cash Advance (CA)
  • 5 Week
  • No
  • In our scope
  • All India

Product Description

Digital Cable Identification System is designed to be used for detection of any fault in underground cable network. It is made having compact structural configuration and assures long service life with low maintenance requirement. This system is perfect for all kinds of single & multicore cables while ensuring high precision. It is provided with indicator lights for all charging, on/off, & overheat conditions. Digital Cable Identification System features high impulse current thus ensures excellent results. It can be availed at highly competitive rates in different configurations as demanded by our trusted clients.

Digital Cable Identification System

  • Standard Warranty: One Year
  • Other models available: Cable Identification System CI 60 ( Mains Operated)

Specifications

Cable Identification Transmitter PG 60S


Power Supply

230V AC + 10%, 50 Hz, Single phase or from built in-Accumulator with internal charging supply

Impulse Voltage

36 V

Impulse Current

60 Amp

Impulse Sequence I

2.5s

Impulse Sequence II

2.5 and 1 s alternating

Indication

Analog moving coil meter for output current

Charging Indication

Power on indication

Low battery Indication

Operating Time

6 Hrs. Continuous

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

-5 Deg C ~ 60 Deg C

Dimensions

242(L) x 134(W) x 245(D) mm

Weight

5.3 kg Approx.

Digital Cable Identification Receiver PR-6D

Sensitivity

6 stages manually selectable from minimum to maximum.

Display

Digital graphical display 128x64 with back-lit sensing

Indication

Digital Arrow with Right & Wrong indication

Power supply

9V battery (recommended Duracell)

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

-5 Deg C ~ 60 Deg C

Dimensions

235(L) x 130(W) x 50(D) mm

Weight

0.5 kg Approx.

Cable Identification Tongs CT120 (Optional CT150)


Internal Diameter

120 mm

Dimensions

268(L) x 160(W) x 35(D) mm

Weight

1.08 kg




TELEMETRICS EQUIPMENTS PVT. LTD.
