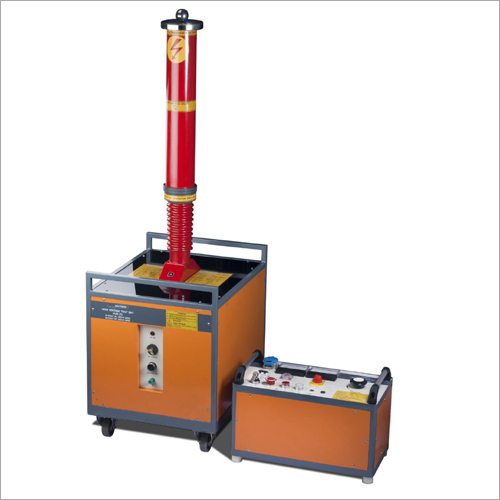

High Voltage AC/DC Test Set

High Voltage AC/DC Test Set

Product Details:

  • Product Type High Voltage DC Test System
  • Material Stanless steel, plastic
  • Measuring Voltage Range 0-16kV Volt (v)
  • Operating Temperature 0 Deg C ~ 55 Deg C Celsius (oC)
  • Protection System As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color Orange color
  • Warranty 1 YEAR
  • Supply Ability : 5 Unit Per Month
1500000 Onwards INR/Unit
X

Price And Quantity

  • 1 Unit
  • 1500000 Onwards INR/Unit

Product Specifications

  • Stanless steel, plastic
  • 0-16kV Volt (v)
  • Orange color
  • High Voltage DC Test System
  • 1 YEAR
  • 0 Deg C ~ 55 Deg C Celsius (oC)
  • As per IEC STANDARD AND CUSTOMIZED BASIS

Trade Information

  • 5 Unit Per Month
  • 4 Week
  • No
  • In our scope
  • All India

Product Description

High Voltage AC/DC Test Set is a type of electrical equipment which is indicated to be used for testing voltage supply in electrical cables. It is completely suitable to be employed for both AC & DC current supply and features an analog meter for testing purpose. This set comprises indicator LEDs for on/off, over heat, & over current tripping indication. It is a manually operated system in which output voltage is controlled through variac. High Voltage AC/DC Test Set is tested on several parameters for ensuring excellent performance and is available at reasonable rates for our trusted customers.

High Voltage DC Test System

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Indication

Analog Meter / Digital LED display for output voltage (kV)

Analog Meter / Digital LED display for output leakage current (mA)

ON / OFF indication

Over Heat LED indication

Over Current Trip LED indication

Protection

Circuit Bracker in Mains input

Variac Zero Inter Lock

Over Current Trip

Over Temperature Trip

Duty Cycle

3 min ON / 10 min OFF

Timer Mode

Manually selectable as required

Mode of Operation

Manual

Output Voltage Control

Controlled manually through variac

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

- 5 Deg C ~ 60 Deg C


TELEMETRICS EQUIPMENTS PVT. LTD.
