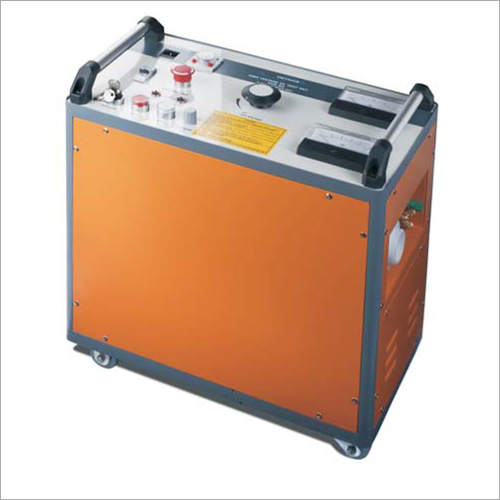

High Voltage DC Test Set (40kV)

High Voltage DC Test Set (40kV)
High Voltage DC Test Set (40kV)
Send Inquiry
Product Code : HVG 40
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • NOS
Product Specifications
  • Product Type
  • High Voltage DC Test System
  • Material
  • Stanless steel, plastic
  • Operating Temperature
  • 0-55  degree C Celsius (oC)
  • Protection System
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color
  • Orange color
  • Dimension(L*W*H)
  • 525 (L) x 300 (W) x 470 (H) mm +Handle 50mm + Wheel 65mm Millimeter (mm)
  • Weight
  • 40kg Kilograms (kg)
  • Warranty
  • 1 YEAR
Product Description

High Voltage DC Test Set (40kV) is used to determine the capacity of insulation to withstand a particular amount of voltage. It is highly trustworthy in nature and has user-friendly operation with low maintenance requirement. This DC test set has variable output voltage, selectable trip current, and overload protection device. It can efficiently operate at temperature range of 0 to 50 degrees Celsius while assuring correct results. High Voltage DC Test Set (40kV) automatically trips when the voltage value exceeds than its predefined value. It is available at market leading rates for our respected clients.

High Voltage DC Test System

  • Standard Warranty: One Year
  • Other models available: High Voltage Test Set HVG 5, HVG 10 HVG 20, HVG 30

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Output Voltage

0-40 kV continuously variable

Output Current

5 mA, 10 mA & 20 mA manually selectable ranges

Indication

Analog Meter for output voltage (kV)

Analog Meter for output leakage current (mA)

ON / OFF indication

Over Heat LED indication

Over Current Trip LED indication

Protection

Circuit Bracker in Mains input

Variac Zero Inter Lock

Built in Auto Discharge

Over Current Trip

Over Temperature Trip

Cooling

Air Cooled

Duty Cycle

5 min ON / 10 min OFF

Timer Mode

Manually selectable as required

Mode of Operation

Manual

Output Voltage Control

Controlled manually through variac

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

- 5 Deg C ~ 60 Deg C

Dimensions

525 (L) x 300 (W) x 470 (H) mm +Handle 50mm + Wheel 65mm

Weight

40 kg Approx


Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 5 Week
  • Sample Available
  • No
  • Packaging Details
  • In our scope
  • Main Domestic Market
  • All India
