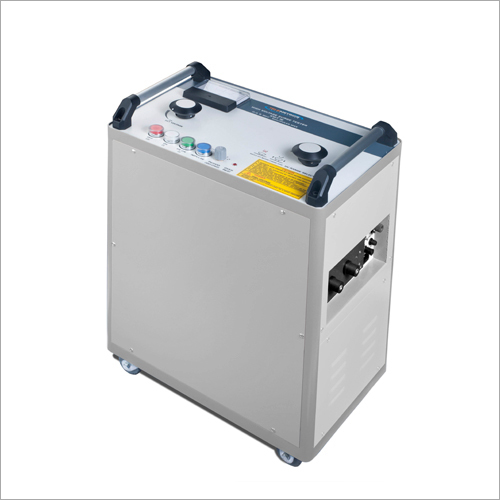

High Voltage Surge Tester

High Voltage Surge Tester

Product Details:

  • Product Type HV Surge Tester
  • Material Stanless steel, plastic
  • Measuring Voltage Range 0-16kV Volt (v)
  • Operating Temperature 0 Deg C ~ 55 Deg C Celsius (oC)
  • Protection System As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color Grey color
  • Dimension(L*W*H) 485 (L) x 350 (W) x 525 (H) mm +Handle 50mm + Wheel 65mm Millimeter (mm)
  • Supply Ability : 5 Unit Per Month
1500000 Onwards INR/Unit
X

Price And Quantity

  • 1500000 Onwards INR/Unit
  • 1 Unit

Product Specifications

  • 485 (L) x 350 (W) x 525 (H) mm +Handle 50mm + Wheel 65mm Millimeter (mm)
  • 0-16kV Volt (v)
  • HV Surge Tester
  • Stanless steel, plastic
  • 0 Deg C ~ 55 Deg C Celsius (oC)
  • Grey color
  • 60 Kg Approx Kilograms (kg)
  • As per IEC STANDARD AND CUSTOMIZED BASIS

Trade Information

  • 5 Unit Per Month
  • 4 Week
  • No
  • In our scope
  • All India

Product Description

HV Surge Tester

  • Standard Warranty: One Year
  • Other models available: HV Surge Tester SWT 16D ( 4, 8, 16kV - 1000J)
  • Associated receiver use to pin-point cable faults with surge tester:  Surge wave receiver SLE90 or SLE200

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Output Ranges

0, 4, 8 & 16 kV selectable & continuously variable

Output Energy

500 Joules full energy at each range (Optional 1000Joules)

Impulse Mode

Single and Auto

Auto Impulse Sequence

1,5,3 and 6 seconds intervals

Indication

ON / OFF lamp indication

Analog moving coil meter for output voltage (kV) Indication

Over Heat indication

Over Load Protection

Input current limiter switch in mains input supply

Fast blow fuse in controlled supply

Safety Protections

Variac zero inter-lock

HV Switch inter-lock

Over Heat Protection

Input current MCB trip in input supply

Cooling System

Air cooled

Operating Time

2-3 hours continuous

Earth Discharge

Soft and automatic discharge

Operating Temperature

0 Deg C ~ 55 Deg C

Storage Temperature

- 5 Deg C ~ 60 Deg C

Dimensions

485 (L) x 350 (W) x 525 (H) mm +Handle 50mm + Wheel 65mm

Weight

60 Kg Approx


TELEMETRICS EQUIPMENTS PVT. LTD.
