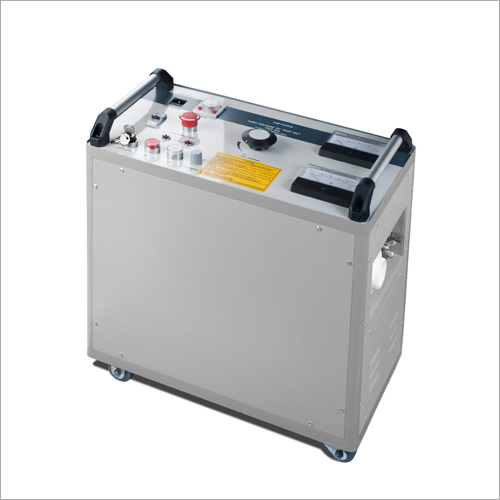

HV DC Test System

HV DC Test System
HV DC Test System
Send Inquiry
Product Code : HVG 40
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • NOS
Product Specifications
  • Product Type
  • HV DC Test System
  • Material
  • Stanless steel, plastic
  • Measuring Voltage Range
  • 0-100kV AC/DC Volt (v)
  • Operating Temperature
  • 0-55  degree C Celsius (oC)
  • Protection System
  • Color
  • Grey color
  • Dimension(L*W*H)
  • 525 (L) x 300 (W) x 470 (H) mm +Handle 50mm + Wheel 65mm Millimeter (mm)
  • Weight
  • 40 kg Approx Kilograms (kg)
  • Warranty
  • 1 YEAR
Product Description

HV DC Test System is employed for verifying insulation quality between current carrying components & their enclosure of electrical equipment. It is known to work by applying high voltage to insulation under test whereas leakage current is measured. This test system is completely reliable in nature and has a long service life. It has continuously variable output voltage range of 0 to 40 kV whereas output current can be selected as per need. HV DC Test System offers high leakage current range and is provided with a timer for setting test time duration. It can be availed in different configurations at highly competitive rates as demanded by our esteemed clients.

HV DC Test System

  • Standard Warranty: One Year
  • Other models available: High Voltage Test Set HVG 5, HVG 10 HVG 20, HVG 30


Power Supply

230V AC + 10%, 50 Hz, Single phase

Output Voltage

0-40 kV continuously variable

Output Current

5 mA, 10 mA & 20 mA manually selectable ranges


Analog Meter for output voltage (kV)

Analog Meter for output leakage current (mA)

ON / OFF indication

Over Heat LED indication

Over Current Trip LED indication


Circuit Bracker in Mains input

Variac Zero Inter Lock

Built in Auto Discharge

Over Current Trip

Over Temperature Trip


Air Cooled

Duty Cycle

5 min ON / 10 min OFF

Timer Mode

Manually selectable as required

Mode of Operation


Output Voltage Control

Controlled manually through variac

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

- 5 Deg C ~ 60 Deg C


525 (L) x 300 (W) x 470 (H) mm +Handle 50mm + Wheel 65mm


40 kg Approx
