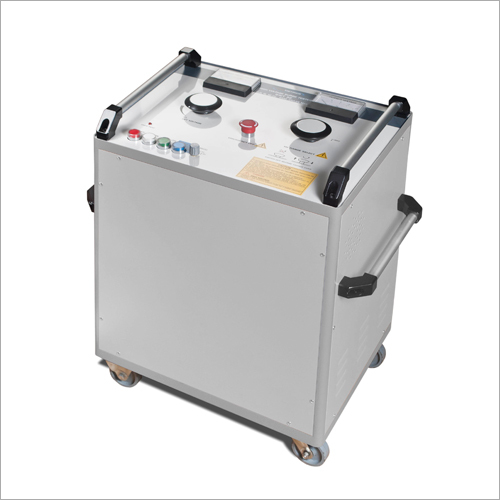

HV Surge Tester

HV Surge Tester
HV Surge Tester
Send Inquiry
Product Code : SWT 32
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • NOS
Product Specifications
  • Product Type
  • HV Surge Tester
  • Material
  • Stanless steel, plastic
  • Operating Temperature
  • 0-55  degree C Celsius (oC)
  • Protection System
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color
  • Grey color
  • Dimension(L*W*H)
  • 550 (L)+ x 450(W) x 650 (H)mm Millimeter (mm)
  • Weight
  • 113 Kg Approx Kilograms (kg)
  • Warranty
  • 1 YEAR
Product Description

HV Surge Tester works on the principle of impedance balance for detecting faults in underground cables. It features continuously variable output ranges and assures complete reliability. This tester has air cooled system and assures automatic earth discharge. It can be continuously operated for as long as 3 hours and has both single & auto impulse modes. HV Surge Tester is also equipped with LED indicator lights for detecting overheat conditions and is provided with HV switch & HV output safety interlocks. It is availab105781le in different configurations as demanded by our trusted customers at reasonable prices.

HV Surge Tester

  • Standard Warranty: One Year
  • Other models available: HV Surge Tester SWT 32D ( 8, 16, 32kV - 2000J)
  • Associated receiver use to pin-point cable faults with surge tester: Surge wave receiver SLE90 or SLE200

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Output Ranges

0 - 8,16, 32 kV selectable & continuously variable

Output Energy

1000 Joules full energy at each range (Optional 2000Joules)

Impulse Mode

Single and Auto

Auto ImpulseSequence

1.5, 3 and 6 seconds intervals

Indication

ON / OFF lamp indication Analog moving coil meter for output voltage (kV) Indication Over Heat indication Varaic, HV switch & HV Output safety interlocks

Over Load

Input current limiter switch in mains

Protection

input supply Fast blow fuse in controlled supply

Safety

Variac zero inter-lock

Protections

Output cable plug inter-lock

HV Switch inter-lock

Over Heat Protection

Input current Limiter in input supply

Cooling System

Air cooled

Operating Time

2 - 3 hours continuous

Earth Discharge

Soft and automatic discharge

Working Temp.

0 Deg C ~ 55 Deg C

Storage Temp.

- 5 Deg C ~ 60 Deg C

Wheel

Rear side : 8 inch solid rubber wheel Front side : 3 inch nylon swivel wheel

Dimensions

550 (L)+ x 450(W) x 650 (H)mm

Weight

113 Kg Approx

Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 5 Week
  • Sample Available
  • No
  • Packaging Details
  • In our scope
  • Main Domestic Market
  • All India
