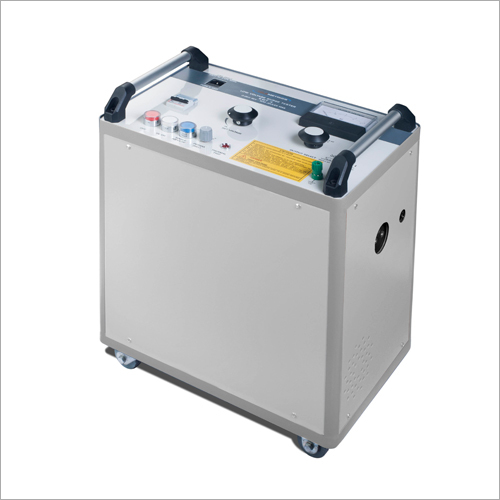

LV Surge Tester

LV Surge Tester
LV Surge Tester
Send Inquiry
Product Code : SWT 6D
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • NOS
Product Specifications
  • Product Type
  • LV Surge Tester
  • Material
  • Stanless steel
  • Operating Temperature
  • 0-55  degree C Celsius (oC)
  • Protection System
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color
  • Grey color
  • Dimension(L*W*H)
  • 485 (L) x 350 (W) x 525 (H) mm +Handle 50mm + Wheel 65mm Millimeter (mm)
  • Weight
  • 60 Kg Approx Kilograms (kg)
  • Warranty
  • 1 YEAR
Product Description

LV Surge Tester finds application for testing resistance against electromagnetic interference in electronic components, equipments, & circuit boards. It works on acoustic method for accurately detecting faults in underground cables. This tester is also suitable to be employed for power transmission and distribution cable networks. It assures high reliability, durability, and long service life. LV Surge Tester offered by us has rugged & compact structural configuration and assures user-friendly nature. It also features various security protection systems including input current MCB trip, overheat, and variac zero & HV switch interlocks.

LV Surge Tester

  • Standard Warranty:  One Year
  • Other models available: LV Surge Tester SWT 6D (3kV & 6kV - 1000J)
  • Associated receiver use to pin-point cable faults with surge tester: Surge wave receiver SLE90

Specifications

Power Supply

230V AC + 10%, 50 Hz, Single phase

Output Ranges

0 - 3 & 6 kV selectable & continuously variable

Output Energy

750 Joules full energy at each range

Impulse Mode

Single and Auto

Auto Impulse Sequence

2, 4 seconds intervals

Indication

ON / OFF lamp indication

Analog moving coil meter for output voltage (kV) Indication

Over Heat indication

Over Load Protection

Input current limiter switch in mains input supply

Fast blow fuse in controlled supply

Safety Protections

Variac zero inter-lock

HV Switch inter-lock

Over Heat Protection

Input current MCB trip in input supply

Cooling System

Air cooled

Operating Time

1 - 2 hours continuous

Earth Discharge

Soft and automatic discharge

Operating Temperature

0 Deg C ~ 55 Deg C

Storage Temperature

- 5 Deg C ~ 60 Deg C

Dimensions

485 (L) x 350 (W) x 525 (H) mm +Handle 50mm + Wheel 65mm

Weight

60 Kg Approx

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Others, Paypal, Cash Advance (CA)
  • Supply Ability
  • 2 Per Week
  • Delivery Time
  • 5 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Within a certain price range free samples are available
  • Packaging Details
  • In our scope
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
