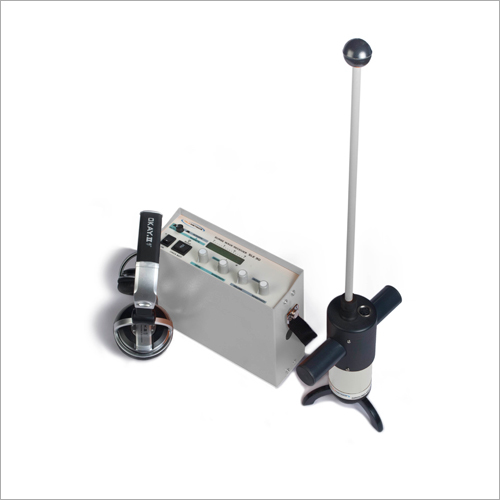

Surge Wave Receiver

Surge Wave Receiver
Surge Wave Receiver
Send Inquiry
Product Code : SLE 90
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • NOS
Product Specifications
  • Product Type
  • Surge Wave Receiver
  • Material
  • Stanless steel, plastic
  • Operating Temperature
  • 0 deg C ~ 55 deg C Celsius (oC)
  • Frequency (MHz)
  • 1Hz to 3000Hz Hertz (HZ)
  • Protection System
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color
  • Grey color
  • Dimension(L*W*H)
  • 240 (L) x 80 (H) x 190 (D) mm Millimeter (mm)
  • Weight
  • 1.5 kg Approx with Batteries Kilograms (kg)
  • Warranty
  • 1 YEAR
Product Description

We are a noted manufacturer and supplier of an excellent range of Surge Wave Receiver. It is User friendly, thus can be taken upto operational area. Made with perfection using high quality components and advance technology, this Surge Wave Receiver is widely praised for small design, superior performance and longer life. These testers are made in such a manner that they can observe every minute fault in the cables. Also, our provided range is strictly in accordance with the industry set norms and standards. This Surge Wave Receiver is provided at the best possible price in the industry.

  • Standard Warranty: One Year
  • Other models available: Surge Wave Receiver SLE 200
  • Associated Surge tester use to pin- point cable faults with surge receiver: Surge Tester SWT 4, SWT 16 & SWT 32

Specifications

Power Supply

1.5 V X 8 AA size batteries

Operating Time

More than 15 Hrs. Continuous

Working Channels

Acoustic and Magnetic

Acoustic Channels

Broad band Filter 70 - 3000 Hz

Magnetic Channels

9820 Hz +10 Hz Bandwidth Filter

Indication

Dual LCD bar-graph display to indicate the levels of acoustic and Magnetic channels.

Battery check status

Peak hold signal level bar on LCD

Gain

More than 96 dB for both magnetic and acoustic channels

Input Impendence

500 Ohm for ground microphone

Operating Temperature

0 deg C ~ 55 deg C

Storage Temperature

- 5 deg C ~ 60 deg C

Dimensions

240 (L) x 80 (H) x 190 (D) mm

Weight

1.5 kg Approx with Batteries



Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 5 Week
  • Sample Available
  • No
  • Packaging Details
  • In our scope
  • Main Domestic Market
  • All India
