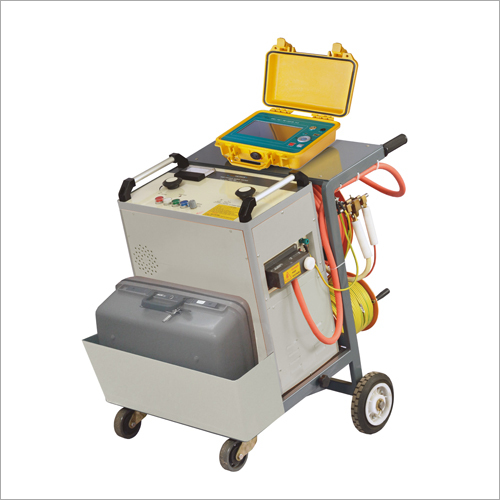

Trolley Mounted System

Trolley Mounted System

Product Details:

  • Product Type Trolley Mounted System
  • Material Stanless steel
  • Operating Temperature 0-55  degree C Celsius (oC)
  • Frequency (MHz) 9820 Hz +10 Hz Hertz (HZ)
  • Protection System As per IEC STANDARD AND CUSTOMIZED BASIS
  • Color Grey color
  • Dimension(L*W*H) 800 (L) x 750 (W) x 950 (H) mm with Rubber wheels. Millimeter (mm)
X

Price And Quantity

  • 1 NOS,

Product Specifications

  • 120 Kg Approx. Kilograms (kg)
  • As per IEC STANDARD AND CUSTOMIZED BASIS
  • Trolley Mounted System
  • 9820 Hz +10 Hz Hertz (HZ)
  • Stanless steel
  • 800 (L) x 750 (W) x 950 (H) mm with Rubber wheels. Millimeter (mm)
  • 0-55  degree C Celsius (oC)
  • Grey color
  • 1 YEAR

Trade Information

  • Cash Advance (CA)
  • 5 Week
  • No
  • In our scope
  • All India

Product Description

Trolley Mounted System is designed to be used for pre-location of cable fault in industries and as a part of the electrical management system. It has simple to operate nature and assures long service life with low maintenance requirement. This system is provided with variac & output cable plug inter-lock protection system for enhancing reliability & safety. It can easily operate within a temperature range of 0 to 55 degrees Celsius while ensuring correct results. Trolley Mounted System offered by us has a fault detection range of 100 kilometers with impulse current mode. It is available in different configurations at highly competitive rates for our esteemed clients.

Trolley Mounted System

Specifications

Output Ranges

0 - 4, 8 &16 kV

Output Energy

1000 Joules full energy at each range

Impulse Mode

Single and Auto

Auto Impulse Sequence

1.5, 3 and 6 seconds intervals

Indication

ON / OFF lamp indication

Analog moving coil meter for output voltage (kV) Indication

Over Heat indication

Protection

Variac zero inter-lock

Output cable plug inter-lock

HV Switch inter-lock

Over Heat Protection

Input current Limiter in input supply

General Specifications

Power Supply

230V AC + 10%, 50Hz single phase

Operating Temp.

0 deg C to 55 deg C

Storage Temp.

- 5 deg C to 60 deg C

Dimensions

800 (L) x 750 (W) x 950 (H) mm with Rubber wheels.

Weight

120 Kg Approx.

Cable Fault Pre-locator TFL 8

Fault Distance

100 km

Measurement

TDR (Time Domain Reflectometer)

Mode

ICM (Impulse Current Mode)

Pulse Width

5ns

Low Voltage of Transmitting Pulse

30 V

VOP Range

100 ~ 300 meter/sec

Sampling Rate

200 MHZ

Surge Wave Receiver SLE 90

Power Supply

1.5 V X 8 AA size batteries

Working Channels

Acoustic and Magnetic

Acoustic Channels

Broad band Filter 70 - 3000 Hz

Magnetic Channels

9820 Hz +10 Hz Bandwidth Filter

Gain

More than 96 dB for both magnetic and acoustic channels

Standard

Ground Microphone MIC S

Accessories

Headphone & Connecting cables



TELEMETRICS EQUIPMENTS PVT. LTD.
